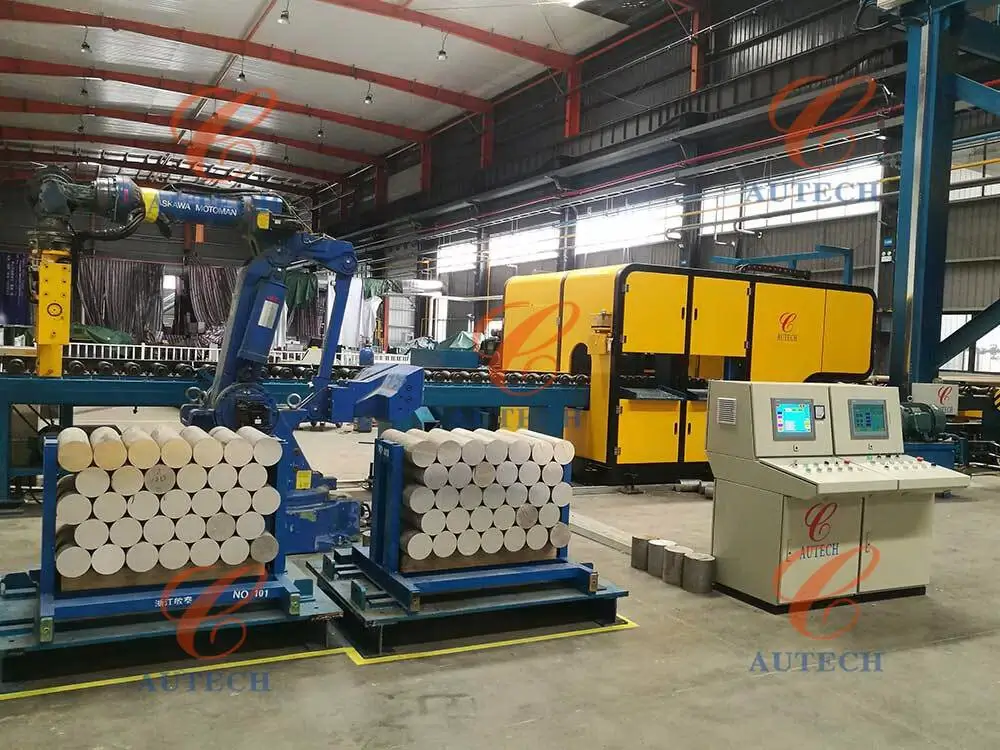

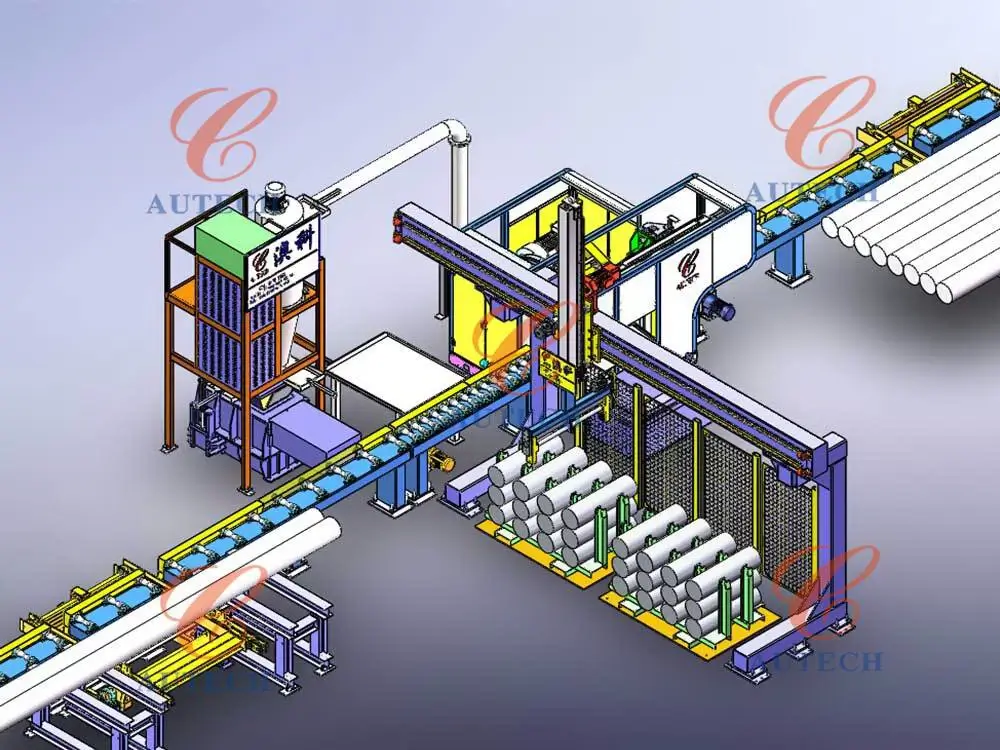

AUTOMATIC BILLET CUTTING PRODUCTION LINE

Key Functions:

1. Automatic Aluminum billet Feeding and Positioning: Aluminum billets are automatically fed, centered, and clamped to ensure cutting stability.

2. Automatic Length Sawing: Aluminum billets are cut to set lengths according to extrusion process requirements; length parameters are flexibly adjustable.

3. Continuous Feeding: Matched to the extrusion production cycle, ensuring a stable and continuous supply of aluminum billets.

4. Automatic Separation of Ends and Scrap: Cut ends and short pieces are automatically sorted for easy recycling and management.

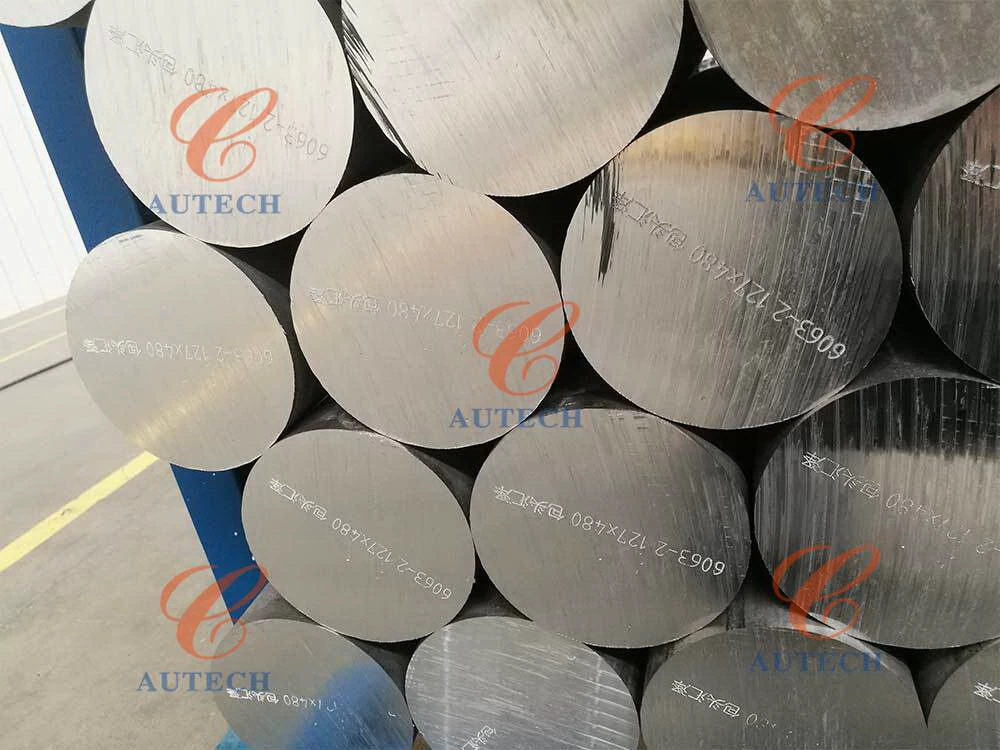

5. Automatic Marking After Sawing: Laser marking or fingerprint marking allows for real-time recording of aluminum billet alloy grade, production date, batch number, and other product information, facilitating identification and traceability.

Key Functions:

Key Benefits:

1. The main structure, including the saw base, is integrally cast, ensuring good stability and high length consistency during sawing, thus improving the stability of the extrusion process.

2. The saw blade’s oil spraying system utilizes a patented design, resulting in a smooth, mirror-like cut.

3. Stable production efficiency, avoiding fluctuations in cycle time due to manual operation.

4. Reduced reliance on manual labor, minimizing the need for measurement, cutting, and handling personnel.

5. High safety, with a closed-loop sawing system reducing operational risks.

6. Suitable for large-scale production, supporting continuous operation of high-capacity extrusion lines.

For detailed equipment parameters and solutions, please contact us.
